Orthotropic bridge deck - FEA model

I've chosen to say "model", not "simulation", because no checks have been done on these :

• "convergence"
• peer-review
• lookover / sleep-on-it
• etc

"What the bridge user sees"

"What the bridge user sees" (to an approximation!)

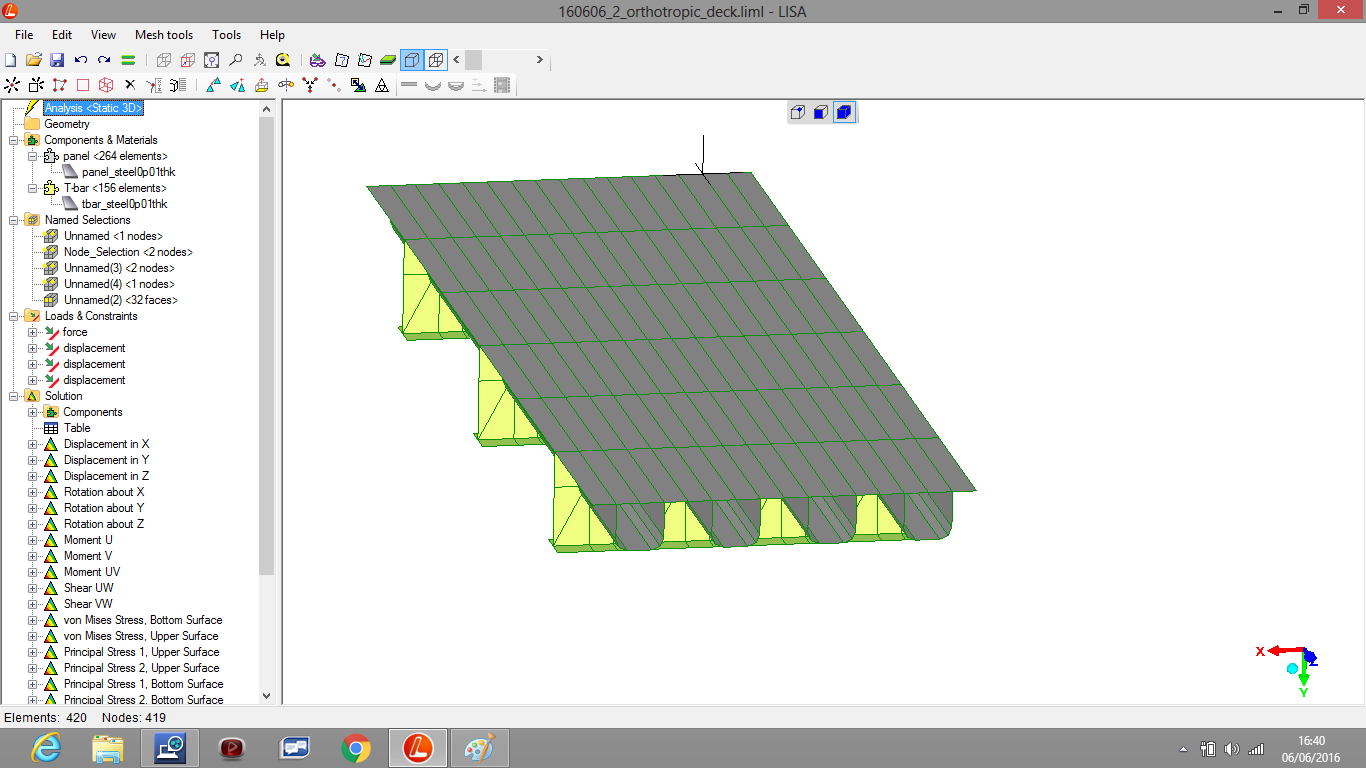

The bridge user sees the planar deck, the top-surface of the following image - stretching away for the length of the bridge and across the width of the passageway.
The structure beneath is hidden, in reality, from the bridge-user.

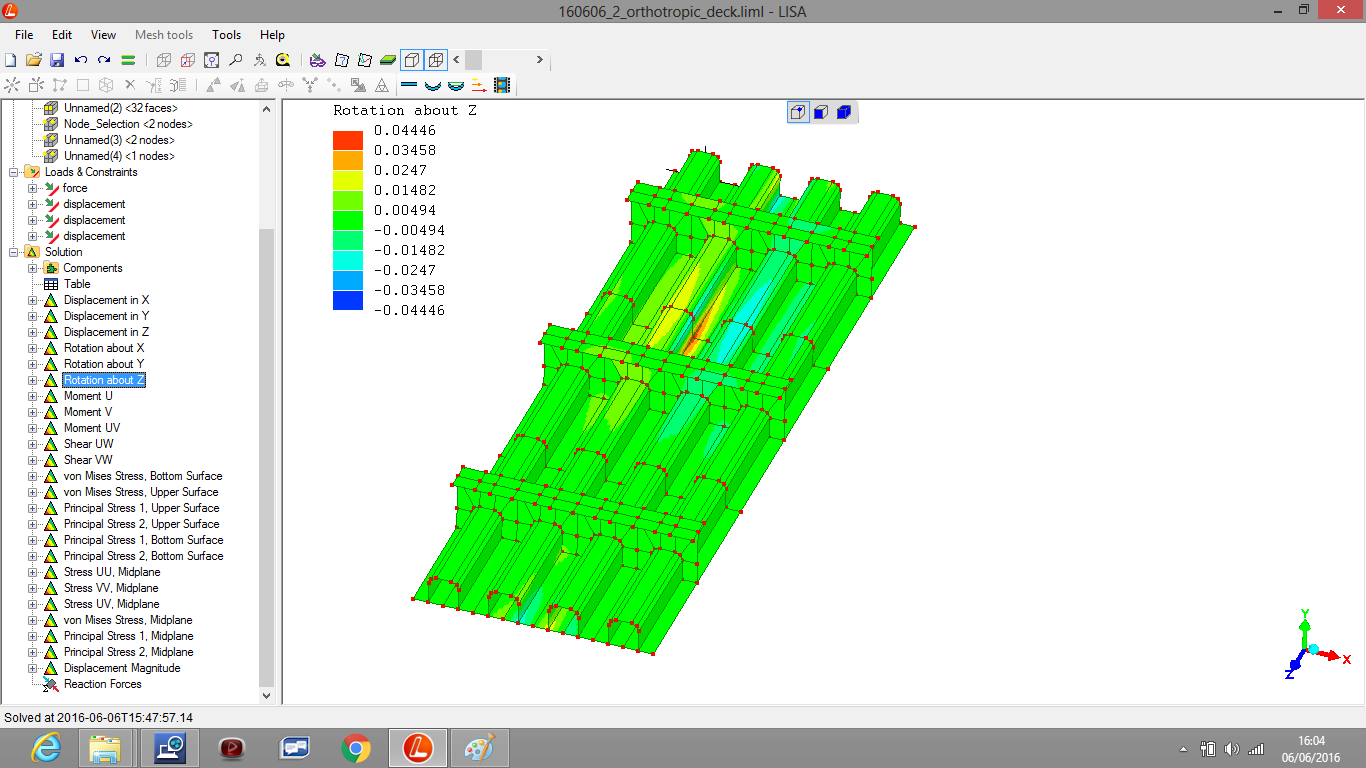

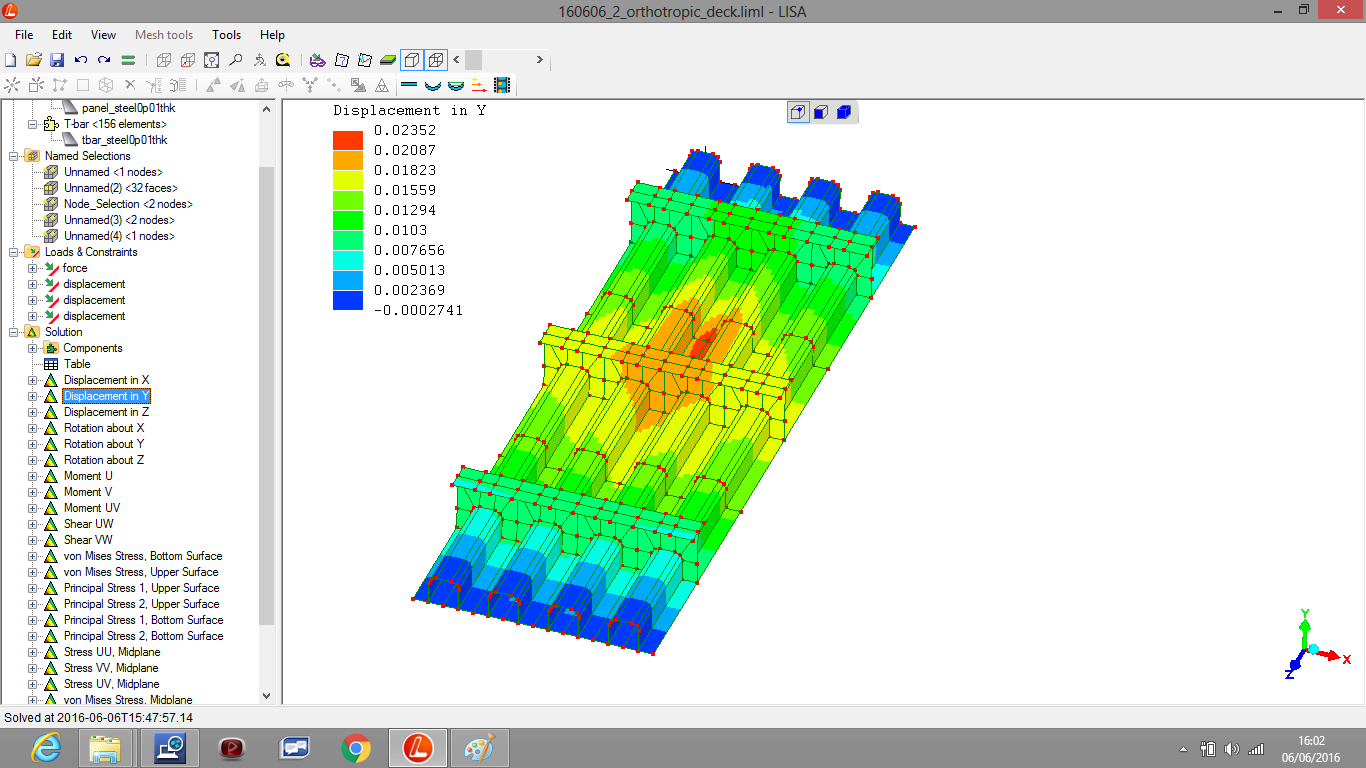

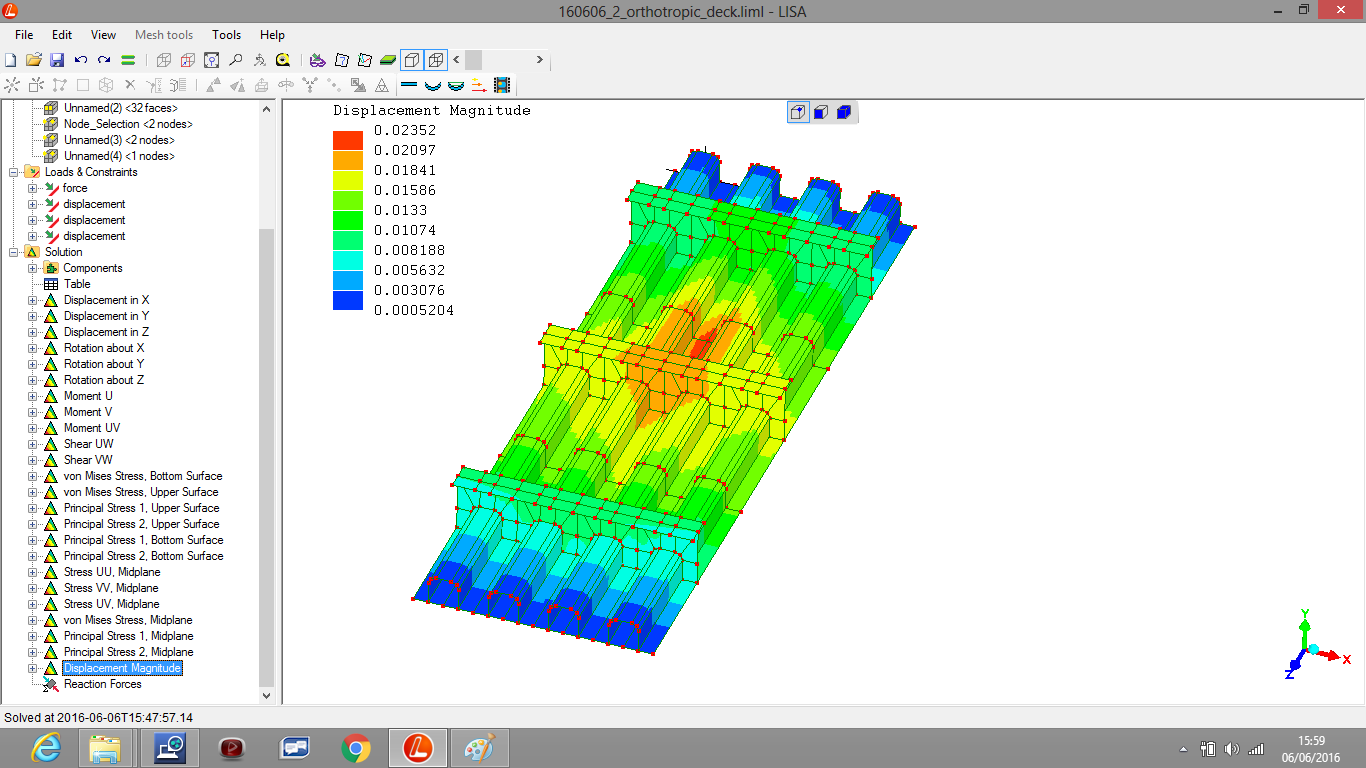

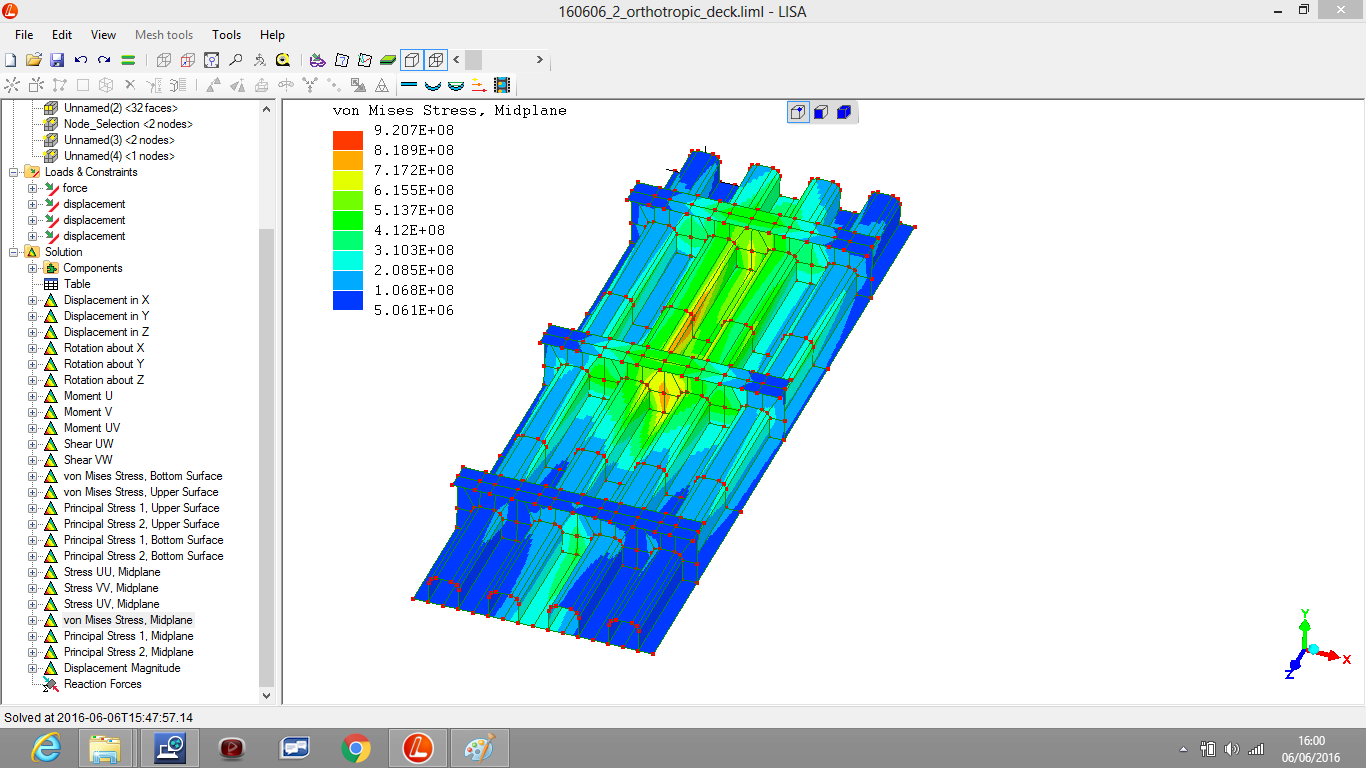

Orthotropic bridge deck - model and results

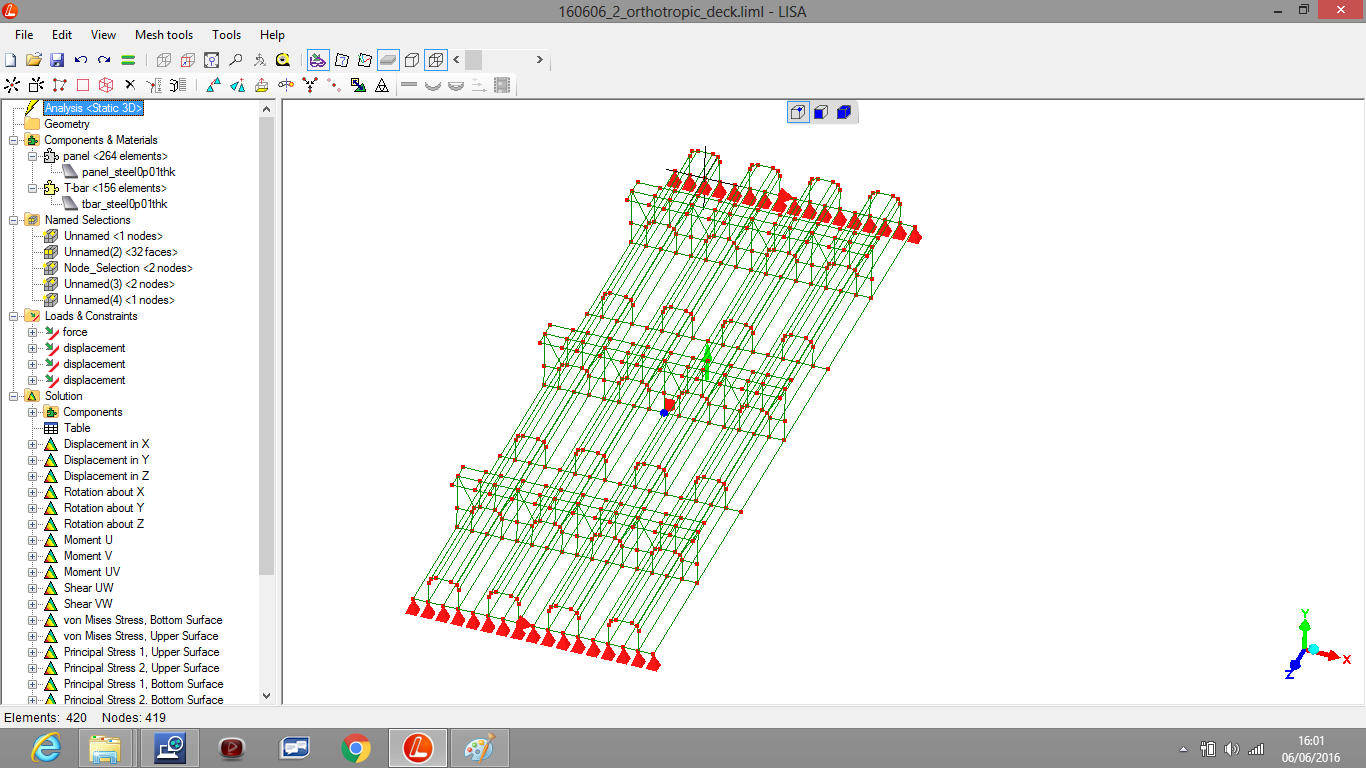

The bridge-deck is modelled and displayed "upside-down".

(R. Smith, 06Jun2016)
